HD SDI Repeater 1080P 8CH Fiber optical vedio converter

Name: HD SDI Repeater 1080P 8CH Fiber optical vedio converter
Brand: NEWBRIDGE
Price: 1 USD

Quality HD SDI Repeater 1080P 8CH Fiber optical vedio converter for sale

Brand Name : NEWBRIDGE

Model Number : ND-TRH8VZ1DF-S20

Certification : CE,FCC

Place of Origin : SHENZHEN,CHINA

MOQ : 1 pair

Price : Negotiation

Packaging Details : packing can be done by customer's requested, usually used in carton

Delivery Time : According to the quantiy and stocking , 3-4 working days after payment

Payment Terms : T/T , Western Union

Supply Ability : According to the different products , the monthly output is different

POWER : DC 5V 2A

port : FC

distance : 20km

Rate : 720p,1080p

Wavelength : 1310nm/1550nm

Humidity : 10%~90% RH

Contact Now

1080P 8CH Fiber optical vedio converter

ND-TRH1VZ1DF-S20 Series are non-managed media converters, which give you economic solutions for media conversion between fiber and copper Ethernet. It provides you SC,FC or ST connectors for your fiber optic cables and RJ45 for twisted pair UTP cable connection.The maximum extension is up to 120km over fiber.

Features

•Self-adaptive output HDTVI signal
• Loss-less real time non-compression transmission
• LED indicators
• Fully enclosed dust-proof design

Optical
Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multi mode,62.5/125u multi mode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC/ST/SC (optional)
Distance 2KM

Video

Number of Channels 1
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz

Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns

Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC

Other
Power DC5V 2A
Power Consumption ≤6W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH
Installation Wall mount
MTBF ≥ 100000Hours

HD SDI Repeater 1080P 8CH Fiber optical vedio converter

Product Tags:

hd sdi signal repeater

video signal repeater

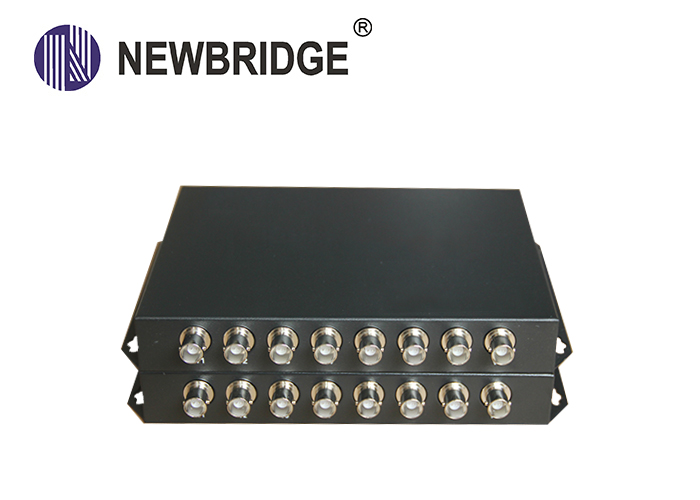

HD SDI Repeater 1080P 8CH Fiber optical vedio converter Images
